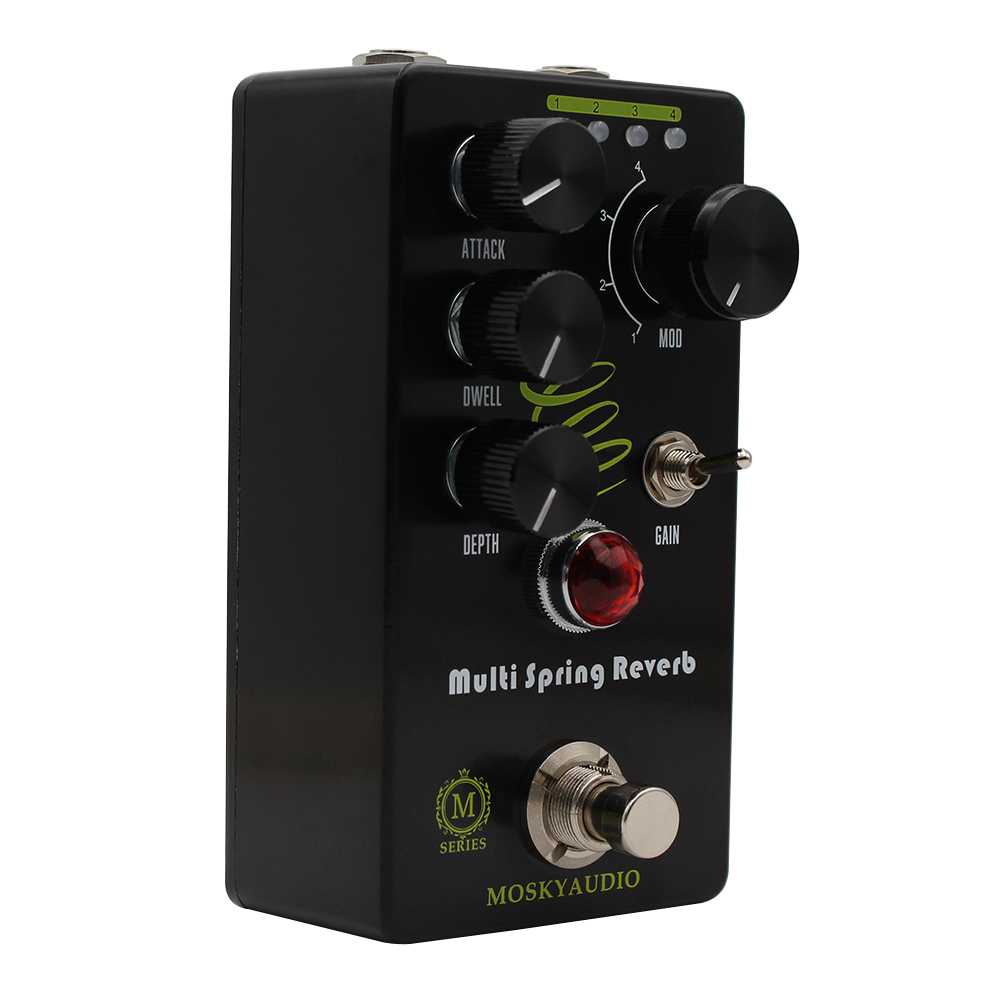

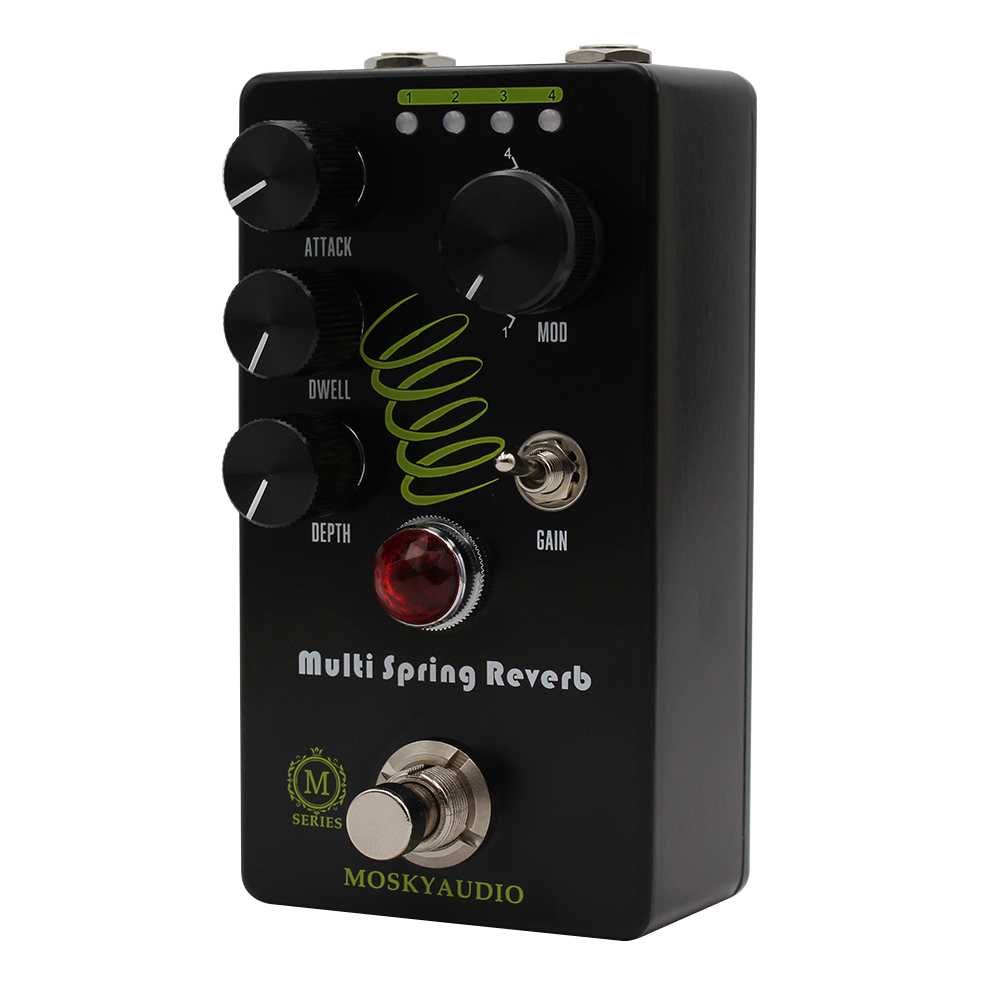

Mosky Audio Multi Spring Reverb M-series Guitar Effect Pedal

MULTI SPRING REVERB

Based on EarthQuaker Devices Ghost Echo V3 Vintage Voiced
Vintage Voiced Reverb

This creepy analog/digital spring reverb emulationmachine boasts a terrifying 30ms – 150ms of pre-delay,
controllable via the Attackknob, for everything from a quick, rockabilly slapback, to viscous pools of ectoplasmicreverberations.
When playing staccato, you’ll hear the tortured trails of the reverb,resulting in more of a slapback,
or echo sound. playing will reveal a massiveambient “depth” that fattens up the sound – and look out it’s right behind you!Phew, that was close.
The Dwell control sets the length and thickness of the decay,which is to say that it controls how long the disembodied spirits of notes no longer with usfloat through the ether;
at the maximum setting, it will decend into an infinite loop of selfoscillation. The Depth sets the intensity of the reverb, which you probably know as the
wet/dry mix, but we like to think of it more as how scary the overall effect is.

CONTROLS:
1. Attack: Adjusts the length of the pre-delay, from 30ms at minimum to about 150ms at maximum. When the Dwell is set to self-oscillate, this will change the pitch of the oscillations.

2. Dwell: Adjusts the length of the decay. This will start to self oscillate around 3 O’clock, the pitch of the oscillations can be changed by turning the Attack control.

3. Depth: Mixes in the wet signal with the dry, unity is around noon and everything after is boosted.

One Toggle Switch: BOOSTE ADD THE GAIN .

4-MODE  MODULATION SELECTION KNOB:
4 Different  Reverb Modulation Modes.

SPECIFICATION:
Input Impedance:10 MΩ
Output Impedance:1 kΩ
True Bypass
POWER CONNECTOR:9Vdc, center negative, 2.1mm x 5.5mm
Dimension(L*W*H):11.5*6.5*5CM
Weight:320g
